LV & HV Tape Range

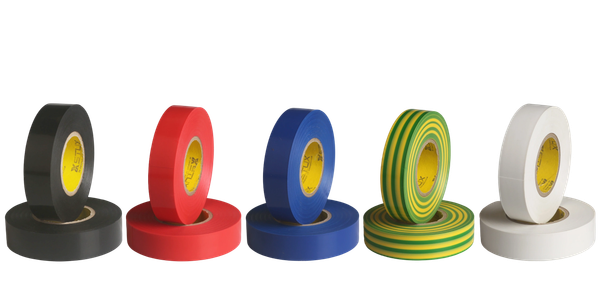

Item: UET013
A robust quality general purpose PVC insulating tape, suitable forapplications under 600V and at temperatures not exceeding 80°C (176°F). This tapeis flame retardant, and approved to CE, and EN60454 standards with certification.Sizes available: 10m, 20m, 33m, various slit widths, with 18/19mm being the mostpopular. A comprehensive range of twelve colours are produced. 13-microns thick.
Item: UET015
A high quality adhesive, allied to a flame retardant PVC insulating carrier,offering the following performance data: * Tensile stregth: > 1.8N/cm* Elongation: > 200%,Voltage breakdown > 6000V.
This STUX product is certificated to the following standards: RoHS, REACH, VDE. Available sizes are 10m, 20m, 33m, and various slit widths. A full colourassortment is available. Suitable for use up to 600V and working temperatures not exceeding 80°C (176°F). 15 microns thick.

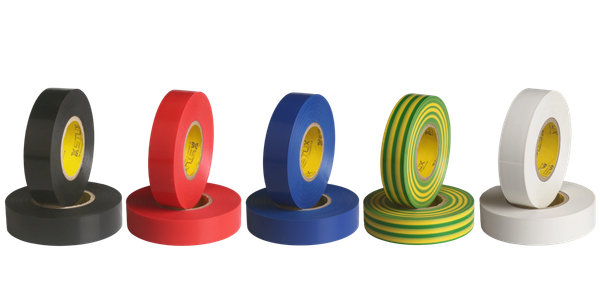

Item: UET018
A UL recognised grade of PVC electrical insulating tape, produced using 18-micron thick self-extinguishing material, with excellent adhesive characteristics. * Tensile strength: > 2.2N/cm* Elongation: > 250%. Available sizes: 18m, 20m, 33m, various slit widths. STUX produce a full gamut of colours. This product is suitable for applications up to 600V and temperatures not exceeding 80°C (176°F).
Item: UEl020
Our low temperature PVC insulating tape, offering a working temperature range from minus 20°C to plus 105°C, is self-extinguishing, coated with an excellent adhesive. * Tensile strength: > 2.2N/cm * Elongation: > 250%. Available sizes: 19mm x20m and an assorted colors.
Other sizes available on request.

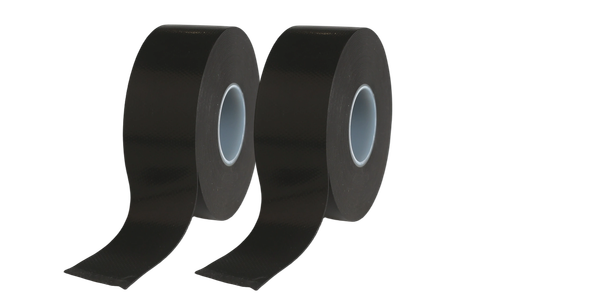

Item: UA5kV
STUX EPR self-amalgamating tape. Applicable voltage class: Up to 5kV. High tensile strength and great elasticity.Offers excellent waterproofing and is airtight when wrapped, therefore widely used by plumbers to repair leaking pipes. Also used to weatherproof exterior electrical connections.
Sizes: 25mm x 5m, 19mm x 9.1m, 25mm x 9.1m, 38mm x 9.1m, 50mm x 9.1m

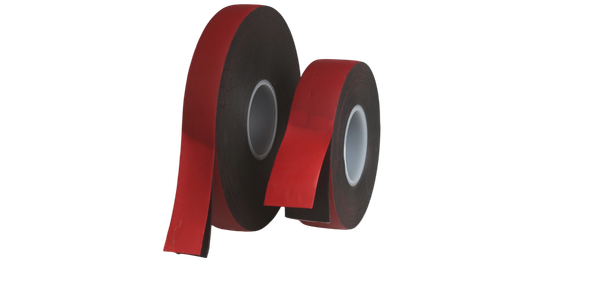

Item: UA14kV
STUX EPR self-amalgamating tape. Applicable voltage class: Up to 14kV,resists temperatures up to 100°C. Recognised by its red release liner, produced and certificated to REACH Quality. Perfect for insulation and waterproof sealing of cable terminals and intermediate joints.
Sizes: 25mm x 5m, 19mm x 9.1m.

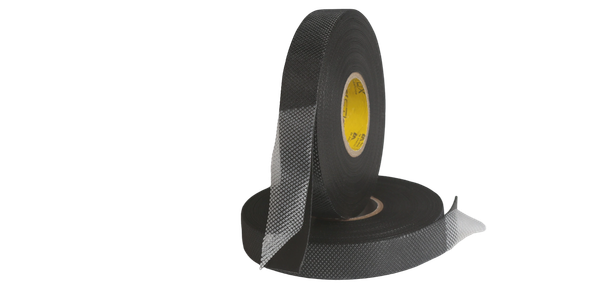

Item: UA35kV
STUX high quality EPR self-amalgamating tape. Applicable voltage class:Up to 35kV, resists temperatures up to 130°C. With a transparent release liner. Perfect for insulation and waterproof sealing of cable terminals and intermediate joints.
Sizes: 25mm x 5m, 19mm x 9.1m.

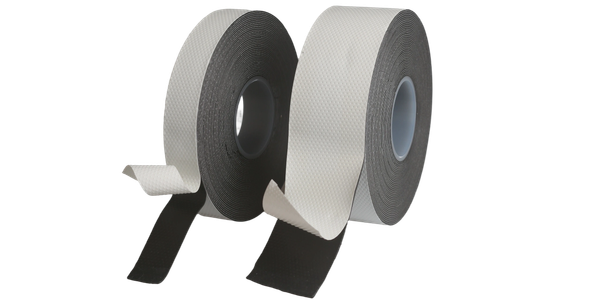

Item: UA69kV:
STUX highest quality EPR self-amalgamating tape. Applicable voltage class: Up to 69kV, resists temperatures up to 130°C. With a white release liner. Perfect for insulation and waterproof sealing of cable terminals and intermediate joints.
Sizes: 25mm x 5m, 19mm x 9.1m.
Item: US05

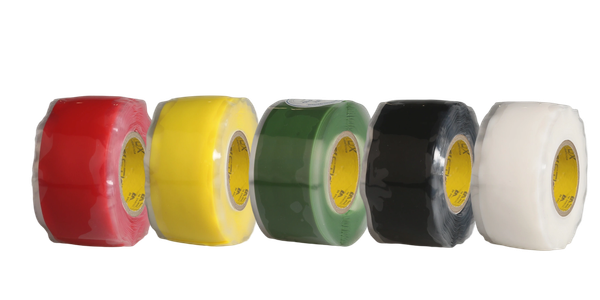

STUX Silicone self-fusing tape has excellent insulation properties, excellent conformability, excellent UV resistance, and offers an operating temperature range of minus 60°C to plus 260°C. Couple this with outstanding flame retardant performance which meets and beats the UL94 V-0 standard.
Sizes: 25mm x 3m, 25mm x 5m, 25mm x 11m

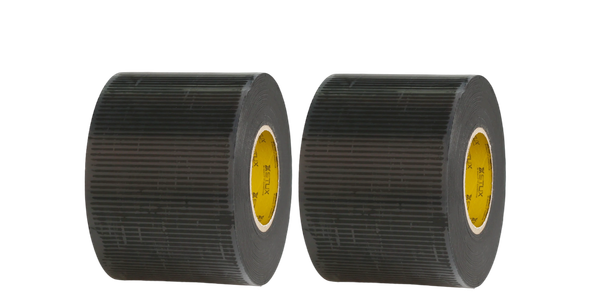

Item: UM320

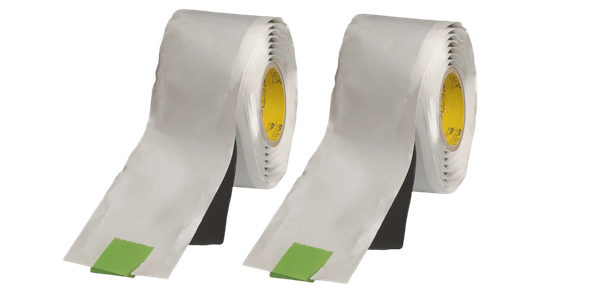

STUX 32-micron thick waterseal mastic tape has tremendous conformability, being easy to stretch and wrap thanks to it being highly malleable. This makes it very convenient for covering irregular joints. Waterproof, moisture-proof, and provides insulation sealing properties
too. Also resistant to low and high temperatures from minus 50°C to plus 80°C. Compares favourably with 3M 2216# under laboratory tests.
Size: 3.2mm(T) x 38mm(W) x 1.5m(L).

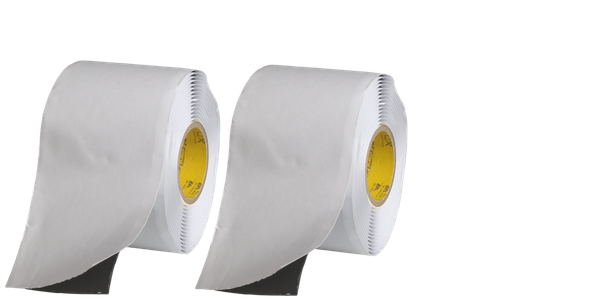

Item: UM165
STUX 16.5-micron thick waterseal mastic composite tape is not only waterproof, but it also offers very strong insulation sealing due to its composite rubber backing. Resistant to high and low temperatures (-40°C to 90°C). Compares favourable with 3M 2228# under laboratory testting.
Size: 1.65mm(T) x 50mm(W)x 3m(L).
Item: UF99
STUX Self-adhesive Fireproof Wrapping Tape has excellent fire resistance, rated to UL94 V-0. It is designed for wrapping electrical and communication cables in various construction environments. Upon exposure to flame, the material rapidly expands to form a carbonised layer that effectively extinguishes the fire, prevents further ignition, and alleviates the further spread of fire. The product is non-toxic, odourless, and environmentally friendly. Its lightweight and thin profile facilitates cable heat dissipation. Being free from Halogen reduces the density of smoke produced. Additionally, it offers excellent UV resistance, ozone resistance, and is exceptionally resistant to chemicals, water, oil, salt, acids, and alkalis, and other harmful substances.
Size: 0.7mm(T) x 60mm(W) x 5m(L).
Item: UFR043
Our STUX Friction Textile insulation tape is a high-grade cotton cloth carrier coated with a pure rubber-based adhesive, providing maximum abrasion and moisture resistance. Commonly used for overwrapping low-voltage splices and harnessing wires.
Item: UFL030
Our STUX PET Fleece Tape offers an extra long fleece that provides excellent noise damping, abrasion resistance, and bundling strength, while keeping harnesses flexible for an easy assembly process. Easy to tear by hand makes it a delight to work with. It resists temperatures from minus 40 F to plus 221 F.
Certification: STUX UFL030 meets or exceeds Noise Damping (LV312) Class C, Abrasion Resistance (5mm mandrel, LV312) Class A, Abrasion Resistance ( 10mm mandrel, LV312) Class B.
Designed for wire-harness bundling in passenger compartments, providing important noise damping
and production flexibility.
Item: UET020
Our STUX PET Fabric tape delivers superior abrasion protection and withstands exceptionally high temperatures. Specifically designed and produced for bundling and wire protection from abrasion in automotive engine bay compartments.
It resists temperatures from minus 40 F to plus 302 F. Abrasion Resistance (5mm mandrel, LV312) Class D, Abrasion Resistance (10mm mandrel, LV312) Class D, Noise Damping (LV312) Class A.
